Description

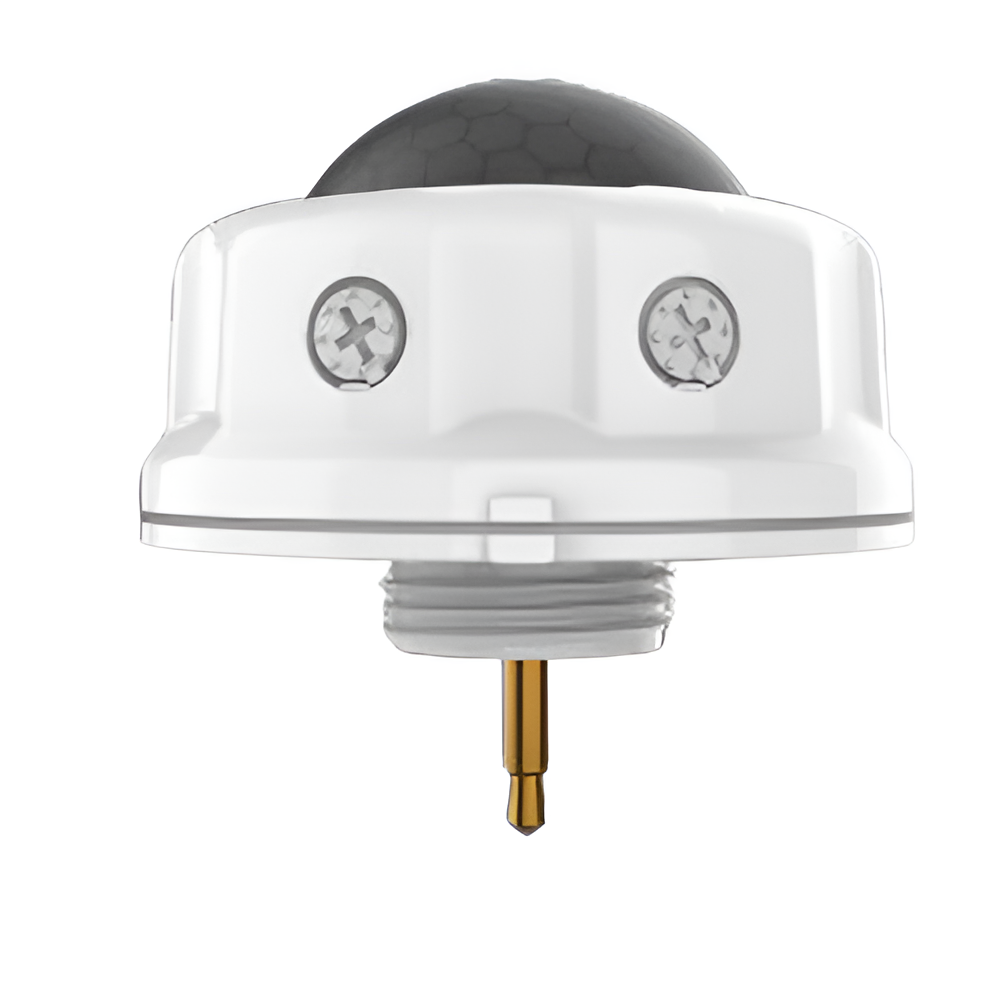

Audio Jack PIR Sensor 12Vdc
The Essenvolt Lighting Passive Infrared (PIR) ceiling mount occupancy sensor, powered by 12Vdc, works in conjunction with Power Packs to effectively control lighting. Its main function is to turn the lights ON or keep them ON upon detecting movement within its range, while automatically turning them OFF when the area is unoccupied.
This sensor is equipped with a dual-element PIR heat detector and a multi-zone optical lens. The Fresnel lens creates multiple detection zones, allowing the sensor to detect the heat emitted by the human body. For activation, the heat source must move between detection zones, which prevents non-moving heat sources, such as incandescent lights, from triggering the sensor.
Applications
| Offices and Commercial buildings | Retrofit Installation | Hospitality venues |
| Hospitals and healthcare facilities | Educational institutions | Warehouse |
| Public transportation hubs | Retail stores | Residential buildings |
| Gyms and fitness centers |
Specifications
| Input Voltage | 12Vdc | Dimming | 0-10V |
| Operating Temp | -40 F to 113 F | IP Rating | IP65 |
| Power Factor | >0.9 | THD | <17% |
| Detection Distance | >10ft | ||
| Certifications | UL | ||
