Description

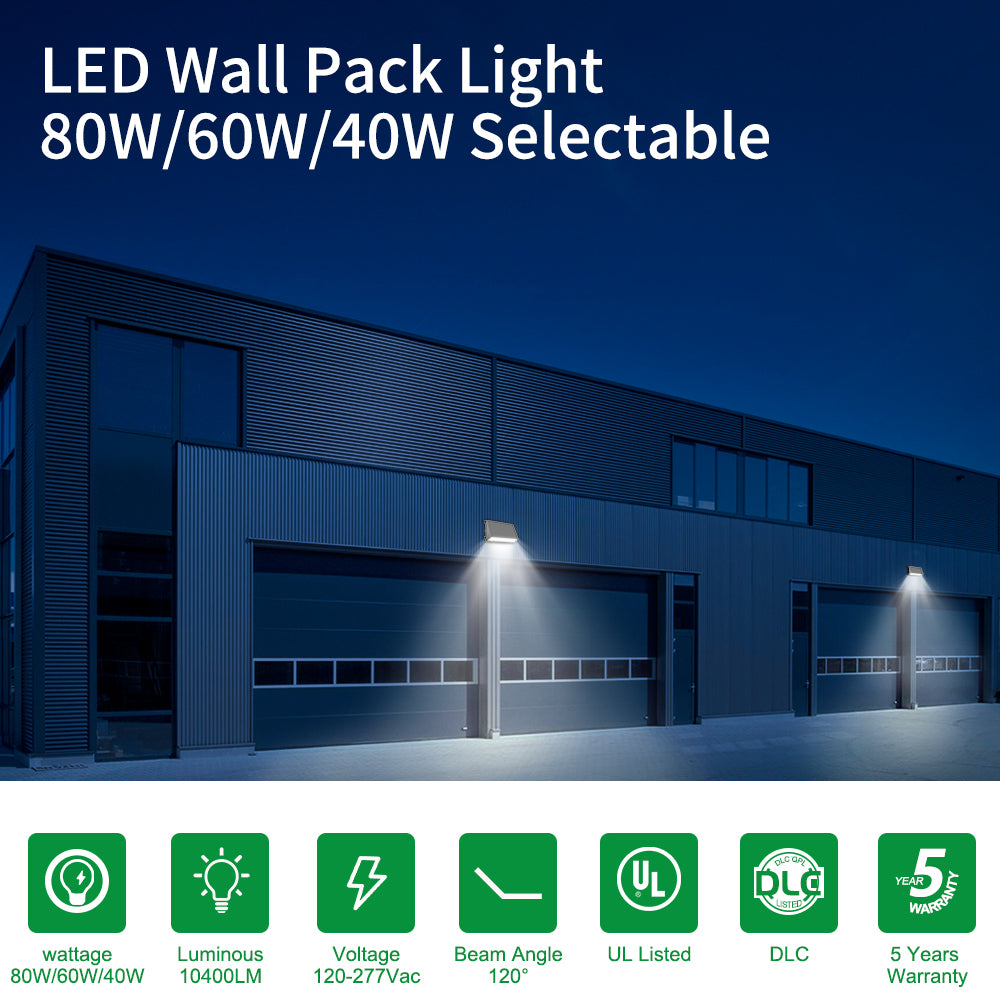

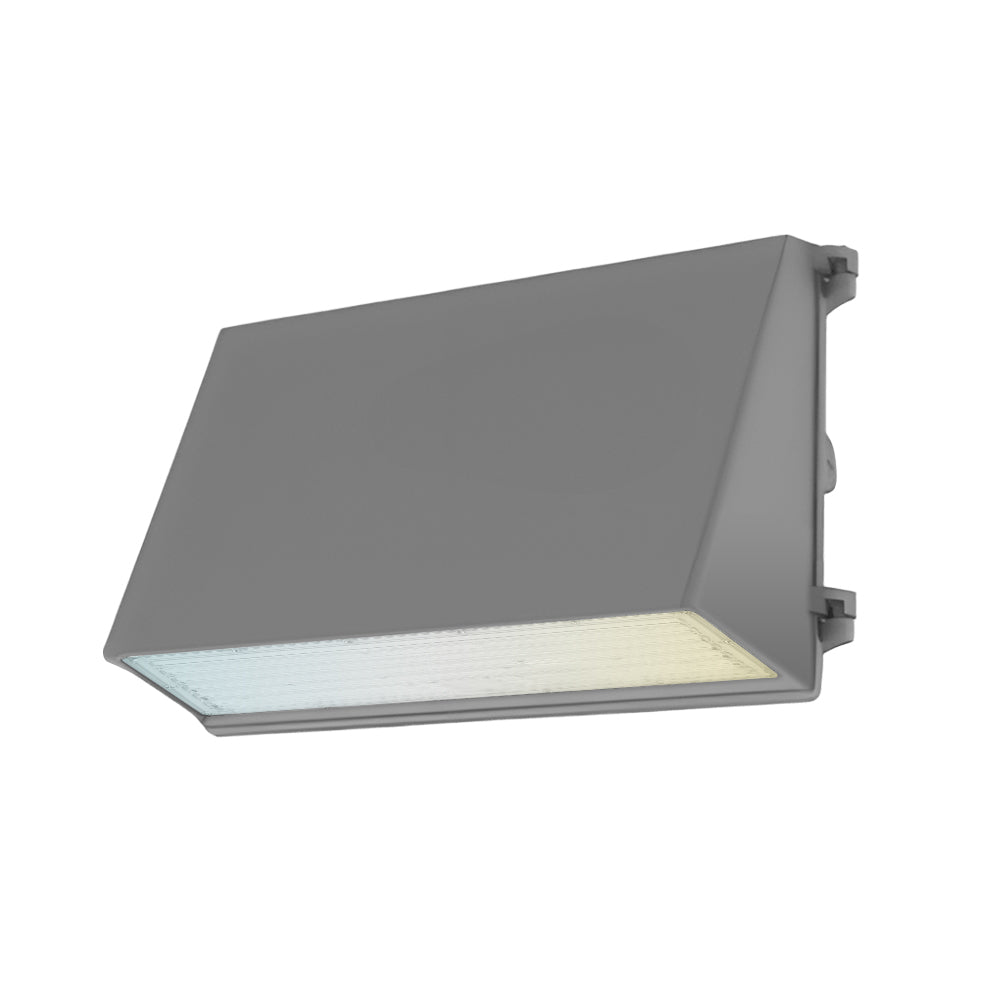

The Essenvolt Lighting Selectable CCT LED Wall Pack combines efficiency, durability, and versatility in a sleek architectural design. Featuring a full cutoff to optimize light distribution and eliminate uplight, it offers selectable wattages of 80W, 60W, or 40W and color temperatures of 3000K, 4000K, or 5000K, ensuring adaptability to client needs or existing conditions. Its lightweight, durable trapezoid-shaped powder-coated housing and sealed polycarbonate lens are IP65 wet-rated for resilience in harsh environments. Perfect for replacing traditional metal halide or HID wall packs, this luminaire enhances safety and visibility while seamlessly integrating into commercial, residential, or industrial spaces.
Applications
| Industrial Facilities | Schools | Building Facade |
| Warehouses | Security Lighting | Residential Complexes |
| Loading Areas | Parking Facilities | Storage Facilities |
|
Building Entrances |
Specifications

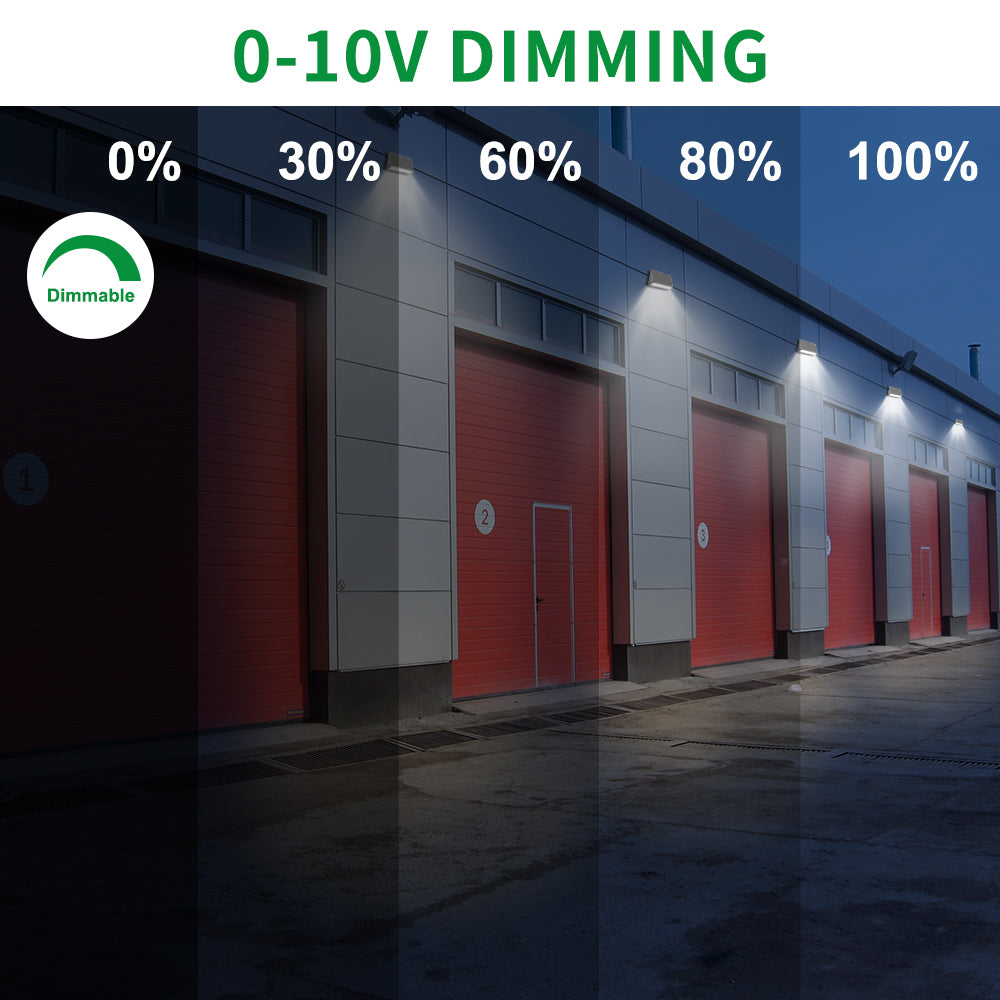

| Input Voltage | 120-277Vac | Dimmable | 0-10V |
| Max. Lumens | 10400 | Efficacy | Up to 130LM/W |
| CRI | >80 | Rated Life | >50,000 hrs |
| Operating Temp | -40 F to 104 F | IP Rating | IP65 |
| Power Factor | >0.9 | THD | <15% |
| Input Wattage | Selectable Wattage 80W/60W/40W | ||
| Color Temperature | Selectable CCT 5000K/4000K/3000K | ||
| Certifications | UL, DLC, Wet Locations | ||

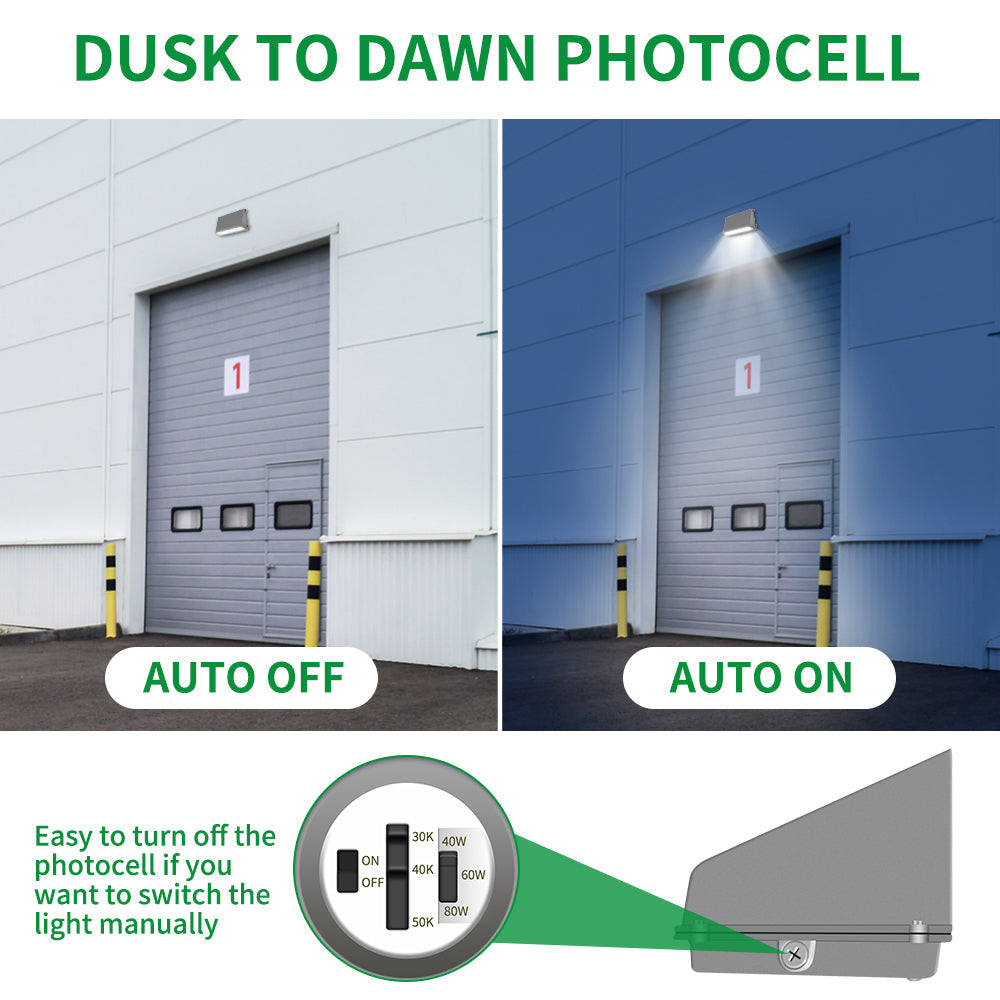

| Sensor & Controls | Photocell | ||
