Description

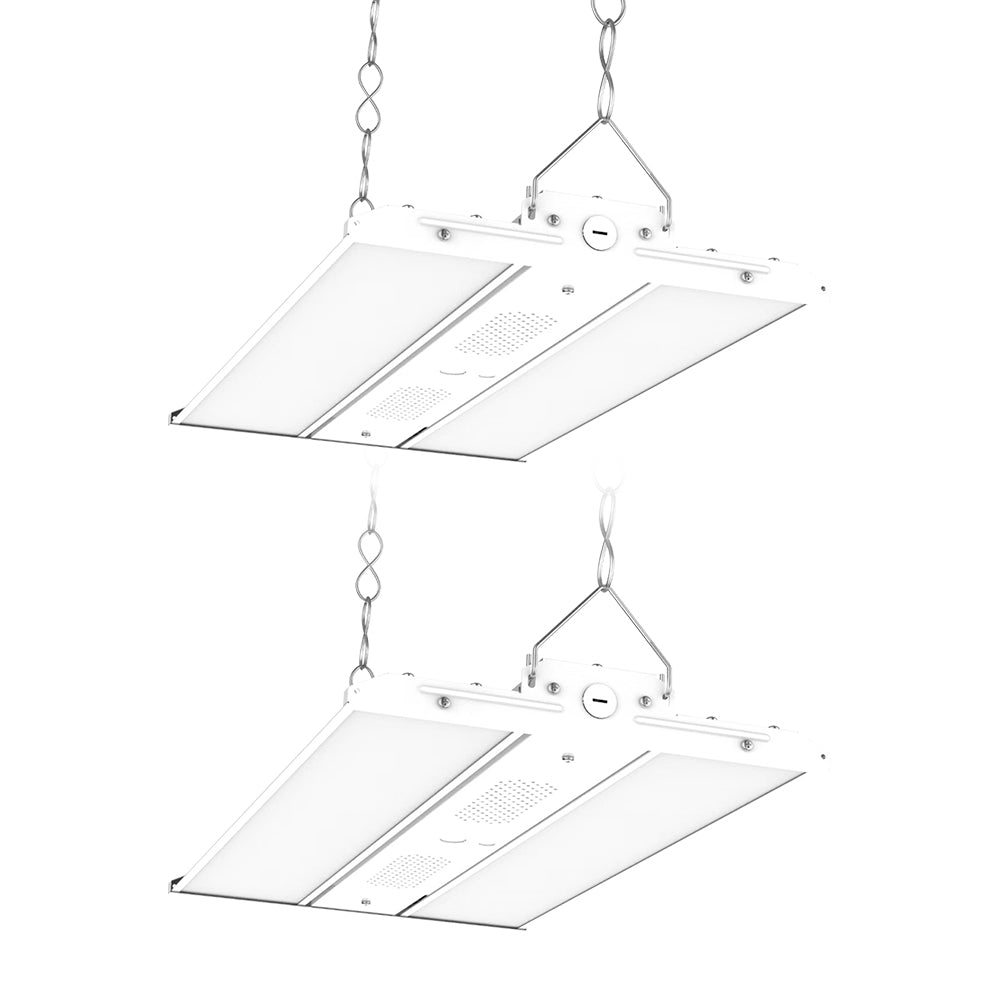

3FT LED Linear High Bay Light

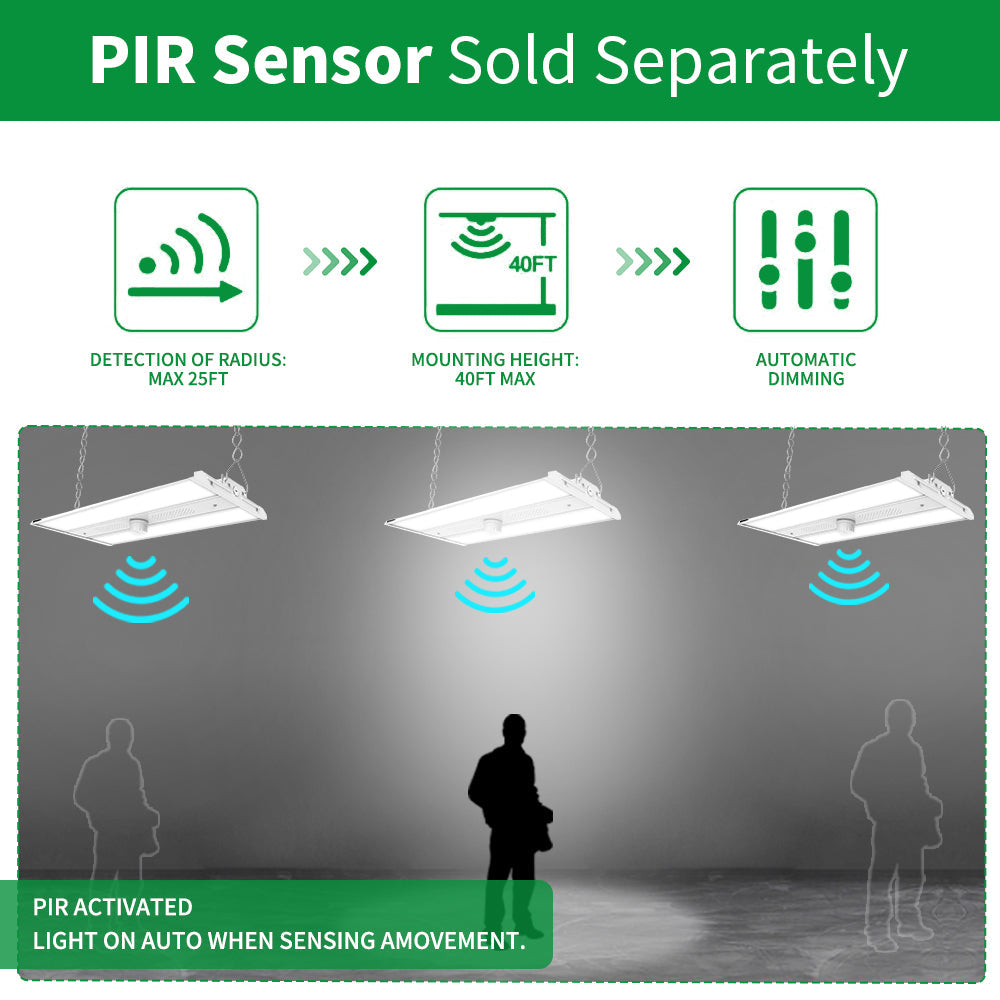

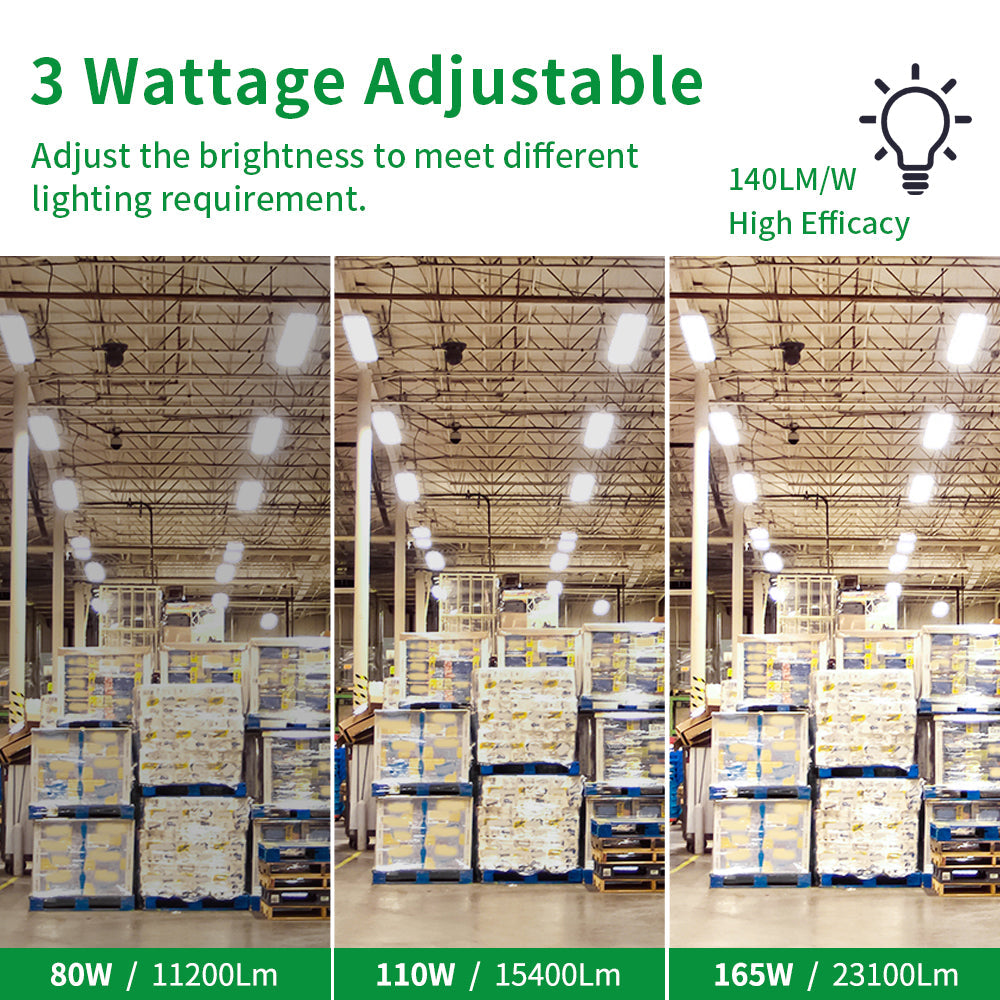

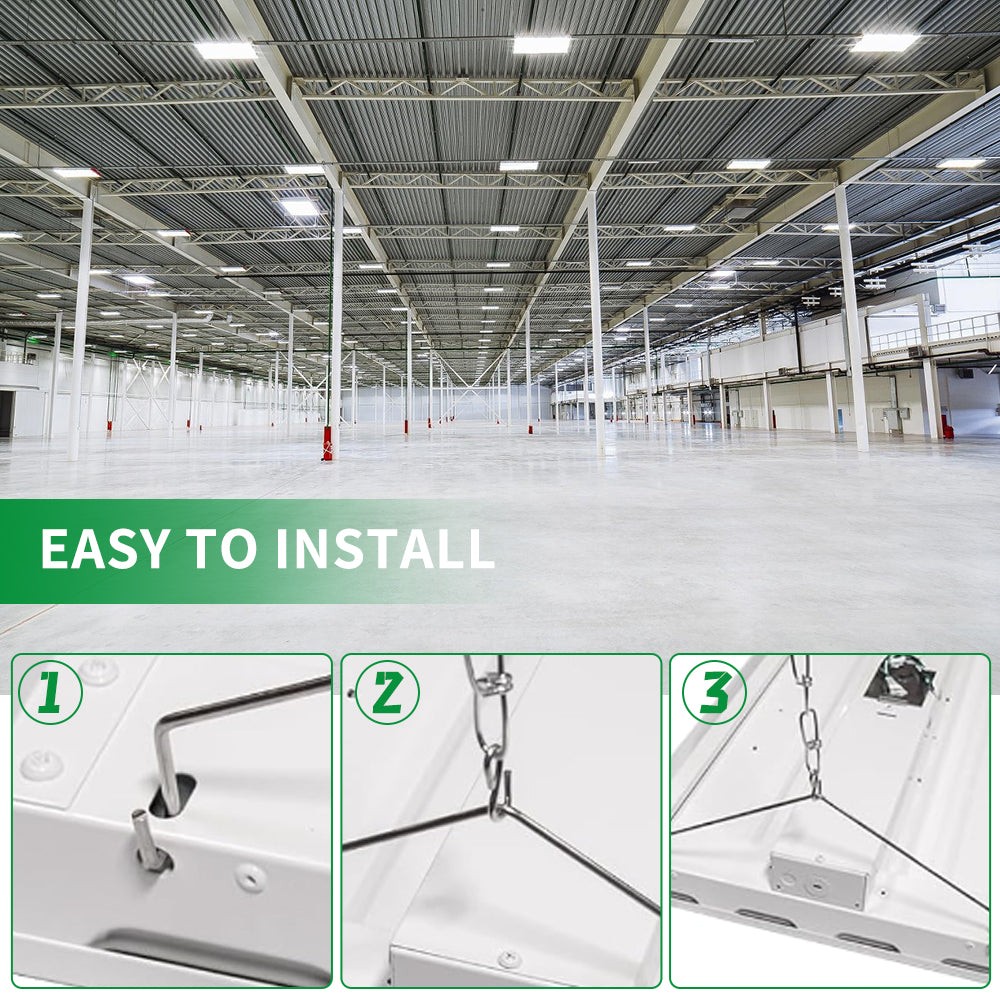

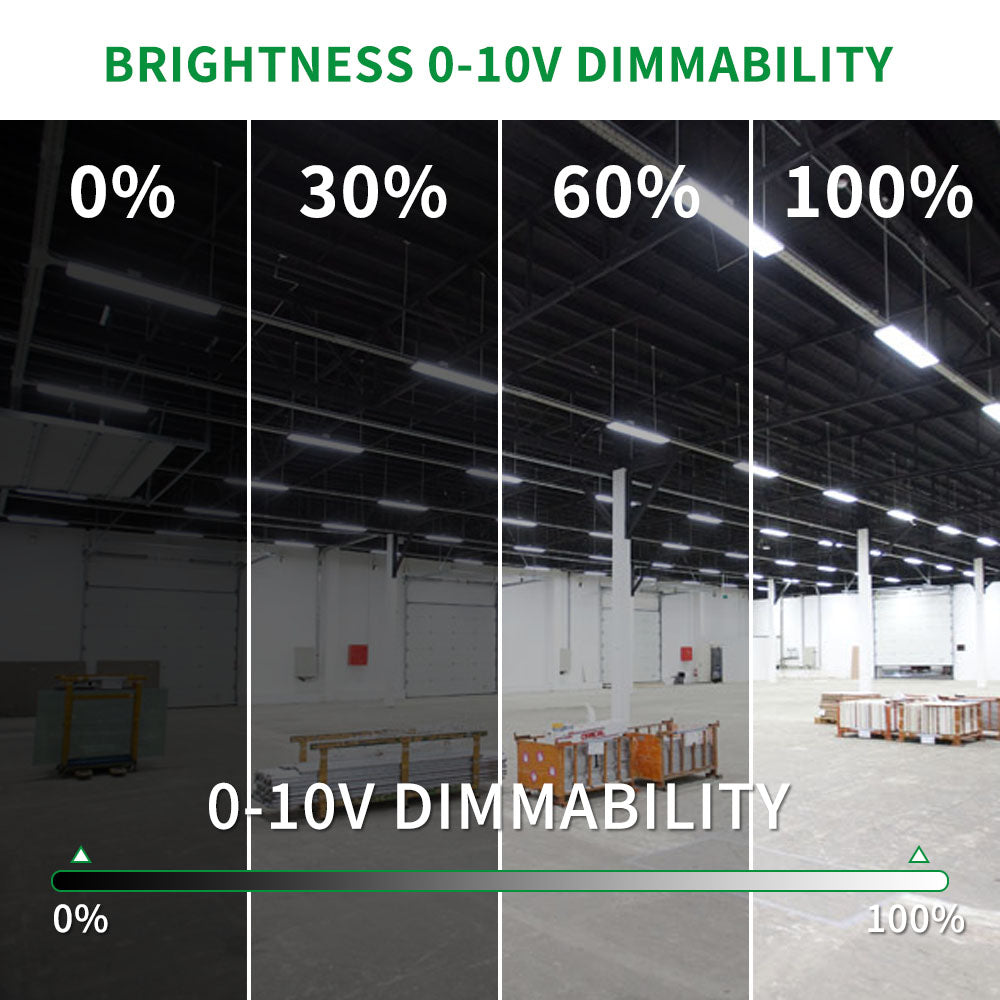

Illuminate your space with the Essenvolt Lighting 3-foot LED linear high bay, a superior fixture designed for exceptional brightness, energy efficiency, and versatility. Boasting an impressive efficacy of 150 lm/W, it effectively replaces metal halide fixtures up to 900W and offers selectable wattage and lumen outputs of up to 45,000 lumens with a 5000K color temperature. Its durable steel and die-cast aluminum construction ensures a lightweight yet robust design, while the built-in port allows for seamless motion sensor installation for automatic operation. Flexible installation options include suspension mounting with a straight link chain and v-hooks, with additional pendant mounting kits available. Operating within a wide voltage range of 120-277V, the high bay includes 0-10V dimming and a sensor receptacle for enhanced control and energy savings. Ideal for warehouses, factories, gymnasiums, and other high-ceiling spaces, the Essenvolt Lighting high bay combines outstanding performance, durability, and efficiency for all your lighting needs.

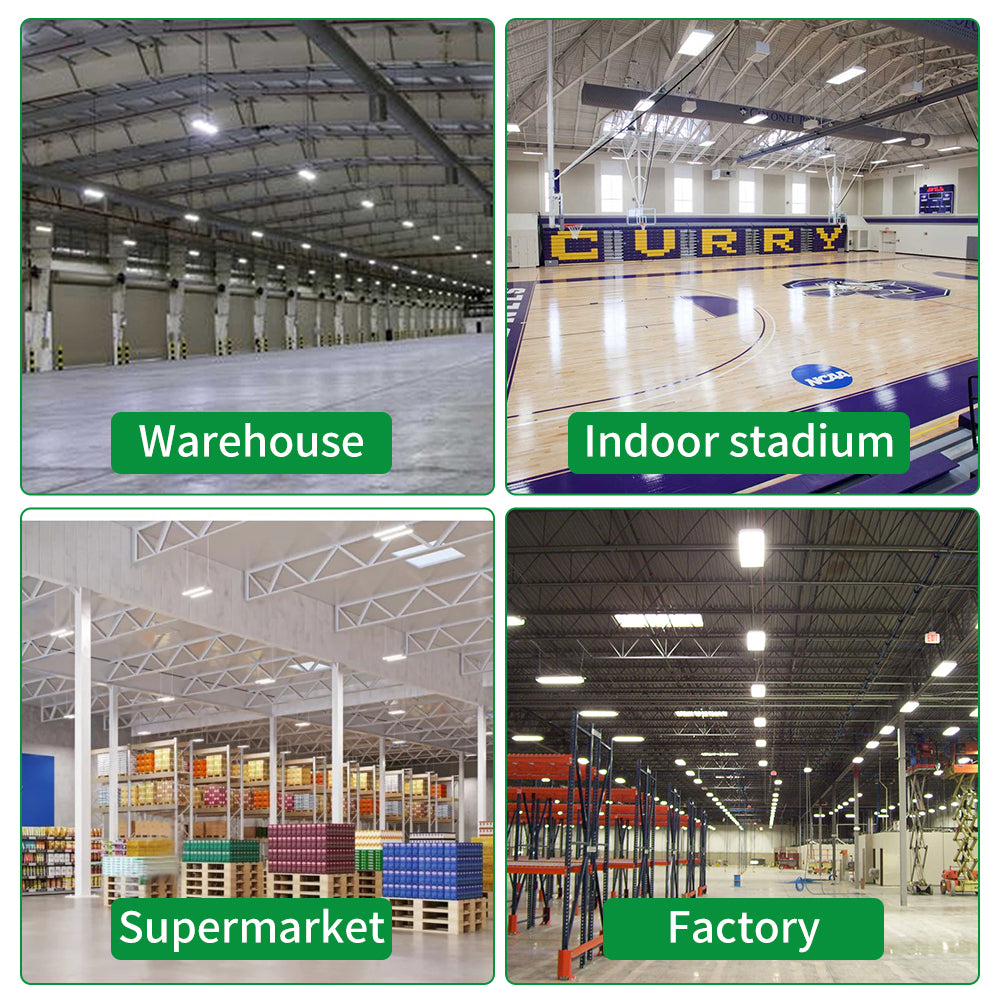

Applications
| Warehouses | Big Box Retailers | Distribution Centers |
| Convention Centers | Educational institutions | Residential Buildings |
| Public Transportation Hubs | Supermarkets | Factories |
| Gyms and Fitness Centers | Manufacturing Plants |
Specifications
| Input Voltage | 120-277Vac | Dimmable | 0-10V |
| Max Lumens | 45000 | Efficacy | Up to 150 LM/W |
| CRI | >80 | Rated Life | >50,000 hrs |
| Operating Temp | -40 F to 113 F | IP Rating | IP20 |
| Power Factor | >0.9 | THD | <17% |
| Input Wattage | Selectable Wattage 300W/225W/165W | ||
| Color Temperature | Selectable CCT 5000K/4000K/3500K | ||
| Certifications | UL, DLC | ||
| Sensor & Controls | Sensor Options | ||
