Description

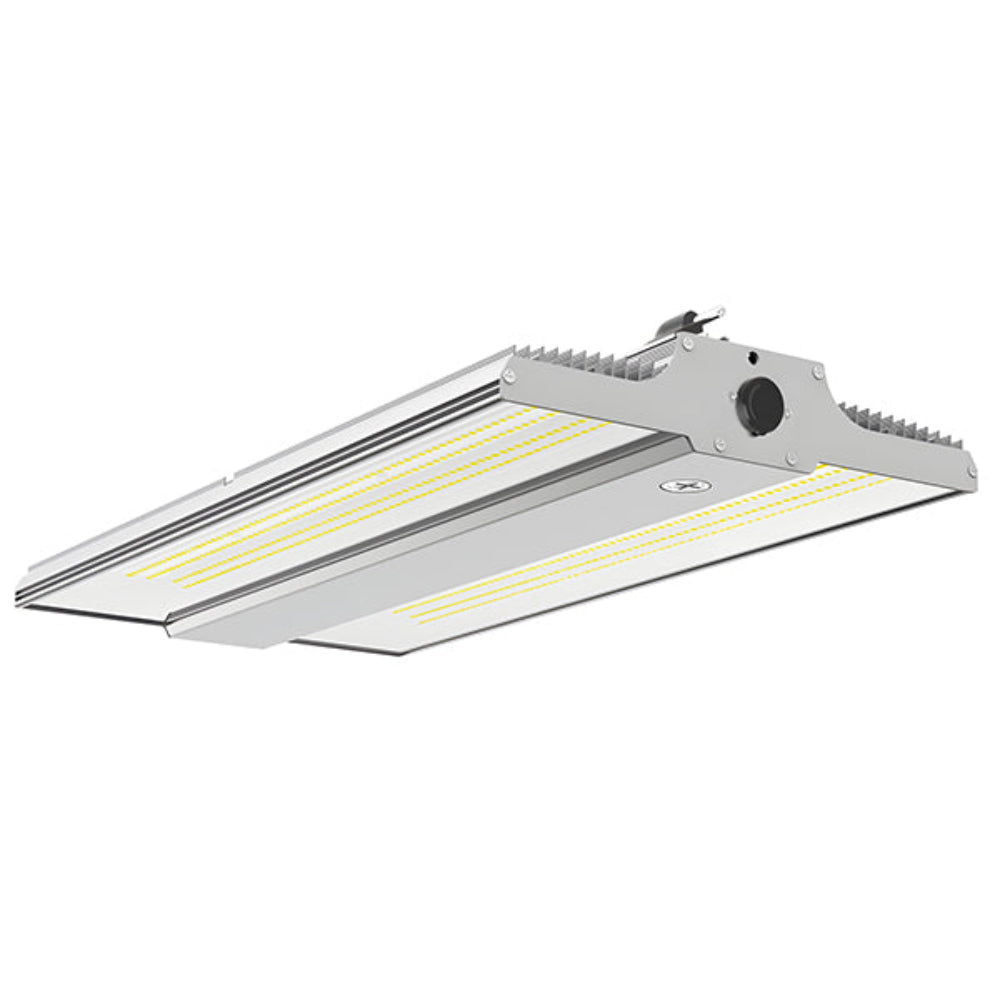

Achieve powerful, efficient lighting with the Essenvolt Lighting 3FT LED Linear High Bay. Designed for high-ceiling commercial and industrial spaces, this fixture delivers up to 24,000 lumens and replaces traditional fixtures up to 900W. Featuring selectable wattage (300W/240W/180W/120W) and dual color temperatures (5000K/4000K), it allows you to tailor brightness and ambiance to your exact needs.
Operating on a wide input range of 347–480Vac, this high bay includes 0–10V dimming for precise light control and a built-in sensor receptacle for optional motion or daylight sensors. Constructed with durable materials and designed for easy installation, it’s ideal for warehouses, factories, gyms, and more.
Applications
| Warehouses | Work Shop | Low Bays |
| Convention Centers | Educational Institutions | Residential Buildings |
| Public Transportation Hubs | Supermarkets | Factories |
Specifications
| Input Voltage | 347-480Vac | Dimmable | 0-10V |
| Max Lumens | 43500 | Efficacy | Up to 145 LM/W |
| CRI | >80 | Rated Life | >50,000 hrs |
| Operating Temp | -40 F to 113 F | IP Rating | IP20 |
| Power Factor | >0.9 | THD | <17% |
| Input Wattage | Selectable Wattage 300W/240W/180W/120W | ||
| Color Temperature | Adjustable CCT 5000K/4000K | ||
| Certifications | UL, DLC | ||
| Sensor & Controls | With Sensor Receptacle | ||
