Description

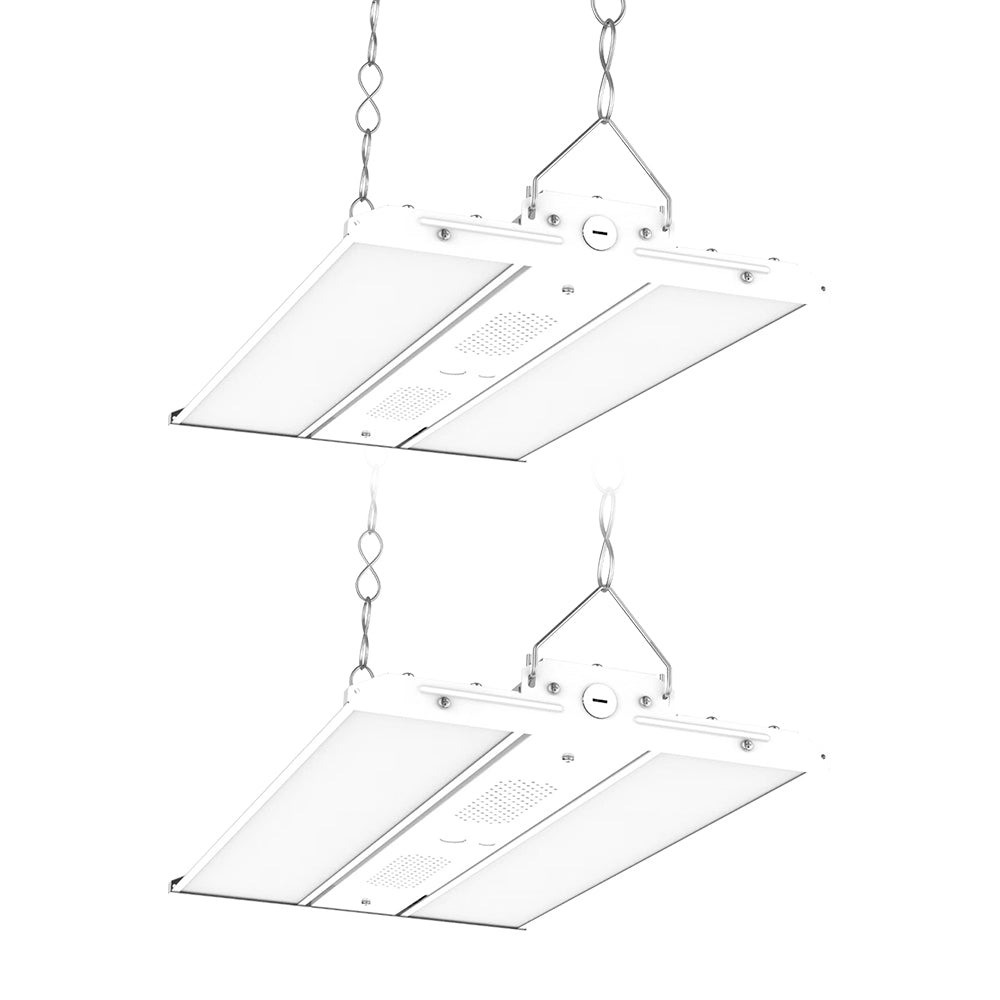

2FT LED High Voltage Linear High Bay Light
Maximize lighting performance with the Essenvolt Lighting 2FT LED Linear High Bay, designed for high-output commercial applications. Delivering up to 30,800 lumens at 150 lm/W, it replaces metal halide fixtures up to 650W. With selectable wattage (220W/165W/110W) and color temperature (5000K/4000K/3500K), it offers full customization for your environment. Built from durable steel and die-cast aluminum, the fixture features a sensor-ready port for optional motion detection and supports 0–10V dimming for enhanced control and energy savings. Compatible with 277–480V, it installs easily with included v-hooks and chain or optional pendant kits. Ideal for warehouses, factories, gymnasiums, and other high-ceiling spaces.
Applications
| Warehouses | Big Box Retailers | Distribution Centers |
| Convention Centers | Educational Institutions | Residential Buildings |
| Public Transportation Hubs | Supermarkets | Factories |
| Gyms and Fitness Centers | Manufacturing Plants |
Specifications
| Input Voltage | 277-480Vac | Dimmable | 0-10V |
| Max Lumens | 33000 | Efficacy | Up to 150 LM/W |
| CRI | >80 | Rated Life | >50,000 hrs |
| Operating Temp | -40 F to 113 F | IP Rating | IP20 |
| Power Factor | >0.9 | THD | <17% |
| Input Wattage | Selectable Wattage 220W/165W/110W | ||
| Color Temperature | Selectable CCT 5000K/4000K/3500K | ||
| Certifications | UL, DLC | ||
| Sensor & Controls | No Sensor | ||
