Description

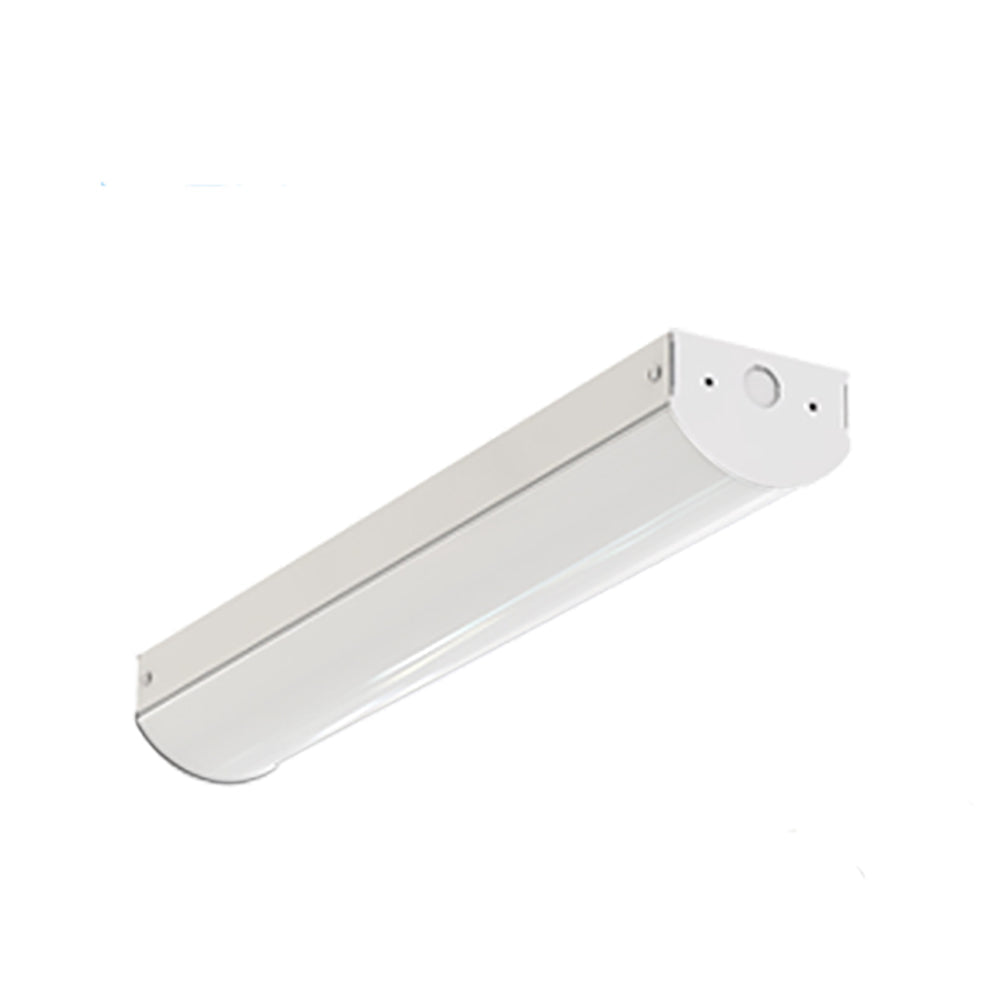

2 Feet LED Stairwell Light Fixture
The 2ft LED Stairwell Fixture is designed for areas with low ceiling heights or in public corridors, stairwells, and utility areas. A curved, frosted polycarbonate lens diffuses the LEDs and creates a uniform 120° beam angle. Surface mount the corner light to the wall or ceiling using the included mounting hardware. Select the desired wattage and color temperature using the switch on the inside of the fixture. 0- 10V Dimming for commercial use. Can be installed through surface mounting on ceilings or walls, or suspended with optional cables. It is compatible with additional accessories such as motion sensors and emergency drivers, which are sold separately. Whether retrofitting existing fluorescent fixtures or integrating into new construction projects,
Applications
| Stairwells and Public Corridors | Retrofit Installation | Utility Lighting |
| Hallways | Educational Institutions | Warehouse |
| Garages | Retail Stores | Residential Buildings |
| Gyms and Fitness Centers | Dormitories | Laundry Facilities |
Specifications
| Input Voltage | 120-277V | Dimmable | 0-10V |
| Lumens | 3900 Max | Efficacy | Up to 130 LM/W |
| CRI | >80 | Rated Life | >50,000 hrs |
| Operating Temp | -40 F to 113 F | IP Rating | IP20 |
| Power Factor | >0.9 | THD | <17% |
| Input Wattage | Selectable Wattage 30W/20W/15W/10W | ||
| Color Temperature | Selectable CCT 5000K/4000K/3500K | ||
| Certifications | UL, DLC | ||
| Sensor & Controls | Motion Sensor or Emergency Battery Backup(Option) | ||
